Dillon – RAPID TRIM SIZE TRIM DIE 223 REM

Product Information

Lee Precision has been producing some of the highest quality reloading equipment for over 50 years. The Lee Deluxe Quick Trim Case Trimmer is the next step in the evolution of quick and accurate case trimming. The Deluxe Quick Trim Case Trimmer quickly and precisely trims brass to the correct length while both chamfering and deburring the case mouth. The great thing about the trimmer is all a reloader has to do is install the correct quick trim die (sold separately), install the trimmer and start trimming brass. The trimmer has a click adjustable stop that allows trim length adjustment in .001" increments and the reloader can shorten cases to a uniform length. Includes a snap on chip catcher. Technical Information: Base Length: Not Applicable, Trimmer mounts in a Quick Trim Die (sold separately) which mounts to any reloading press that utilizes standard 7/8"-14 threaded dies. Material: Steel and Plastic

Collets Used: No, system is press mounted

Collets Included: Not Applicable

Pilots Used: No

Pilots Included: Not Applicable

Features:

•Click Adjustable Stop that allows trim length adjustments of .001"

•Chip Catcher

•Chamfers and Deburrs case mouths

•Ability to trim shorter than standard lengths to reduce trimming frequency

Product Information

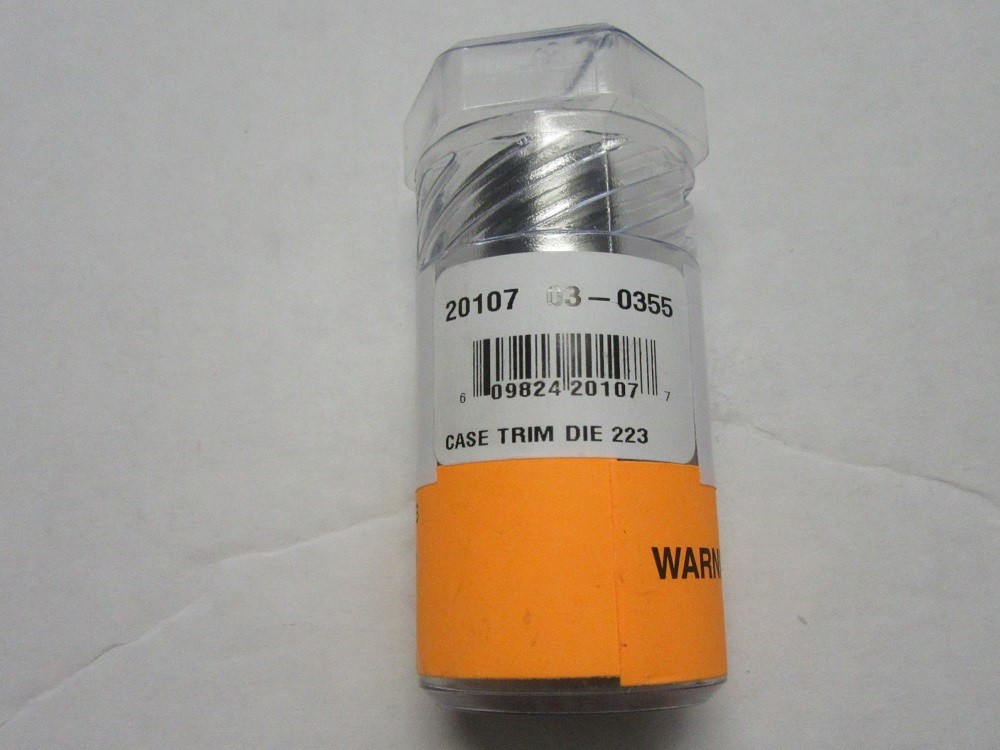

This is a trim die only for the Deluxe Quick Trim Case Trimmer and Value Trim Case Trimmer, both sold separately. With the addition of either of these tools, simply install the appropriate quick trim die in your press and start trimming. No calipers, measurement or adjustment required. Simply install the appropriate quick trim die in your press and start trimming. A click adjustable stop allows trim length adjustment in .001 of an inch increments. Allows the user to shorten case to a uniform shorter length than standard, reducing trimming frequency.

Note:

Requires the purchase of either the Lee Deluxe Quick Trim Case Trimmer 717013 or the Lee Value Trim Case Trimmer 982472

Technical Information:

Dies Included: Quick Trim Die.

Die Size: Standard 7/8"-14 threaded die

Shellholder Required: Yes

Shellholder Included: No

Accessories Included: Plastic Die Box

Notes: Handgun calibers do not come with a die locking ring as it is only needed for the rifle dies.

Product Information

Lyman Case Trimmer Pilots are required when trimming cases with the Lyman Case Trimmer. The appropriate sized pilot lines the case head square to the cutter.
