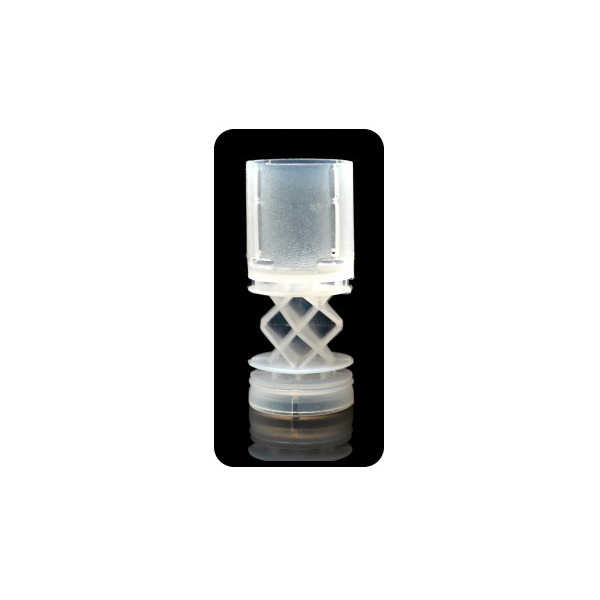

BPI WAD 12ga HCD #24 7/8 TO 1oz LEAD 250/BAG

$22.00

Product Information

Predominantly a 1-ounce wad, but also used with some 7/8-oz. loads. The soft, pliable cushion system is designed to provide the shooter with reduced recoil and to allow a wide range of load adjustment with a consistent level of wad pressure resistance. The “vacuum-trap” anti-powder migration ring is the outstanding feature of this wad, making it an excellent choice for straight-walled hulls such as Fiocchi



 Part #  3/4 to 7/8oz Sporting  Gauge  Purpose  Capacity  Length  Depth  Bag Qty.
 020HCD24  Helix-Cushion Driver 24  12ga  7/8-1oz & int’l  7/8 to 1oz  1.716  0.731  250



10 in stock

Add to Wishlist
Add to wishlist
SKU: BPI020HCD24 Category:
Description
Product Information

  • Product Information

    Predominantly a 1-ounce wad, but also used with some 7/8-oz. loads. The soft, pliable cushion system is designed to provide the shooter with reduced recoil and to allow a wide range of load adjustment with a consistent level of wad pressure resistance. The “vacuum-trap” anti-powder migration ring is the outstanding feature of this wad, making it an excellent choice for straight-walled hulls such as Fiocchi.

    SPECIFICATIONS:

    • Gas Seal: arched dome, .725″ diamter, .215″ thick – two powder rings and two stabilization rings.
    • Overall length: 1.720″
    • Seal to cup bottom: .980″
    • Shotcup depth: .740″
    • Shotcup type: lay-back hinged
    • Optimum range: 20-55 yards
    • Mid-range, going-away and standard targets

    Ballistic Products Inc.

    View more Ballistic Products Inc. products

    Technical Notes

     Part #  3/4 to 7/8oz Sporting  Gauge  Purpose  Capacity  Length  Depth  Bag Qty.
     020HCD24  Helix-Cushion Driver 24  12ga  7/8-1oz & int’l  7/8 to 1oz  1.716  0.731  250


Additional information
Weight 2 lbs
Shipping & Delivery
